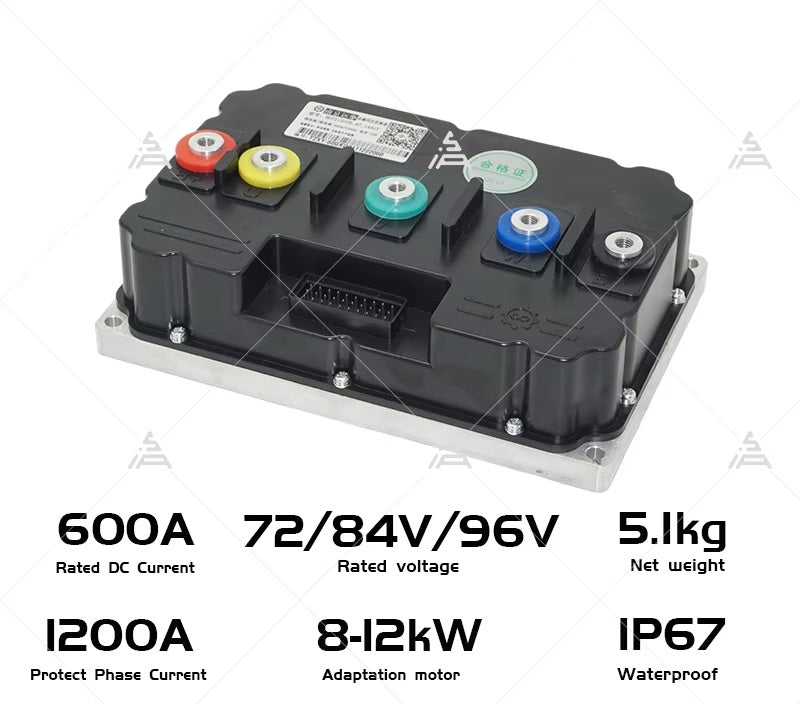

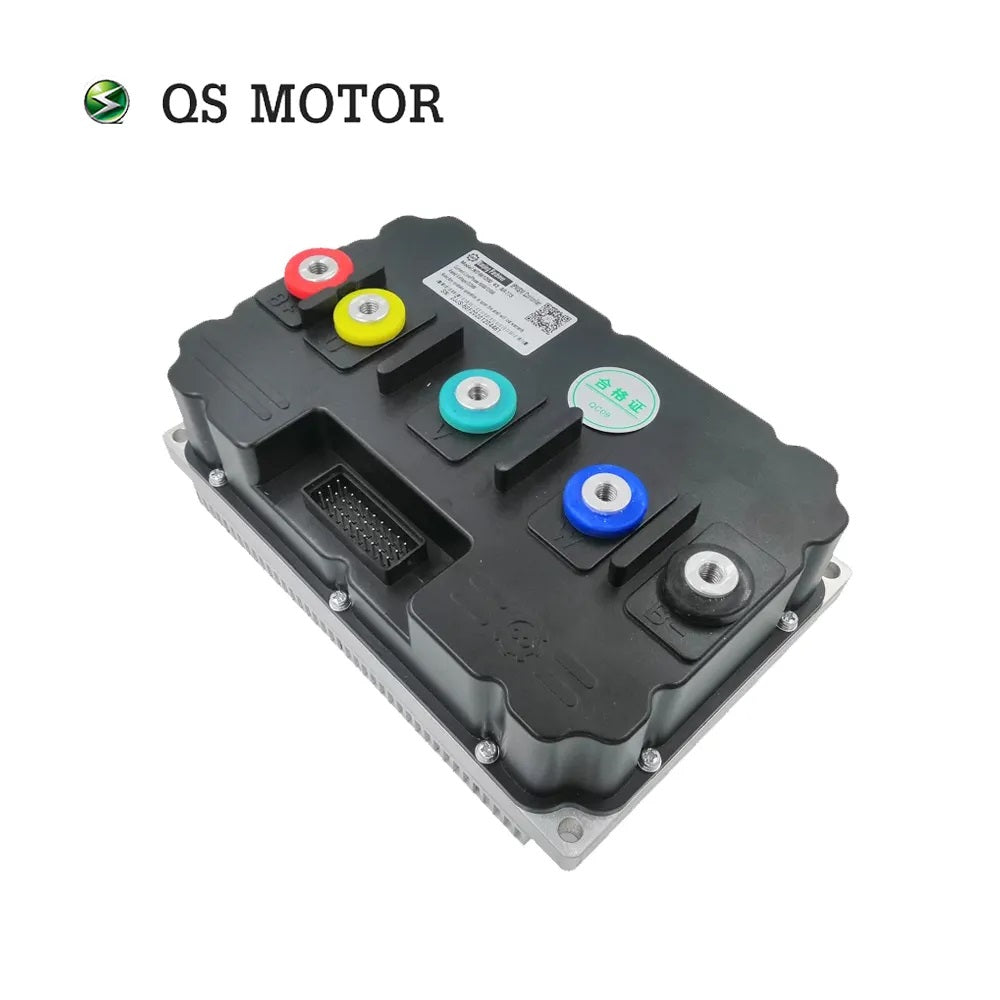

FarDriver ND721200 BLDC 600A 8-12kW High Power Electric Motorcycle Controller
Sale price
Price
Rs. 0.00
Regular price
Unit price
per
Description:
One set including below kits
1. 1pcs X ND721200 sine wave controller
2. 1pcs X Blue-tooth adaptor
One set including below kits
1. 1pcs X ND841200 sine wave controller
2. 1pcs X Blue-tooth adaptor
One set including below kits
1. 1pcs X ND961200 sine wave controller
2. 1pcs X Blue-tooth adaptor
Product Description:
Packaging and delivery
Key Features
1). All the raw materials are imported, using high-performance Moss tube, full metal shielding and aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined.

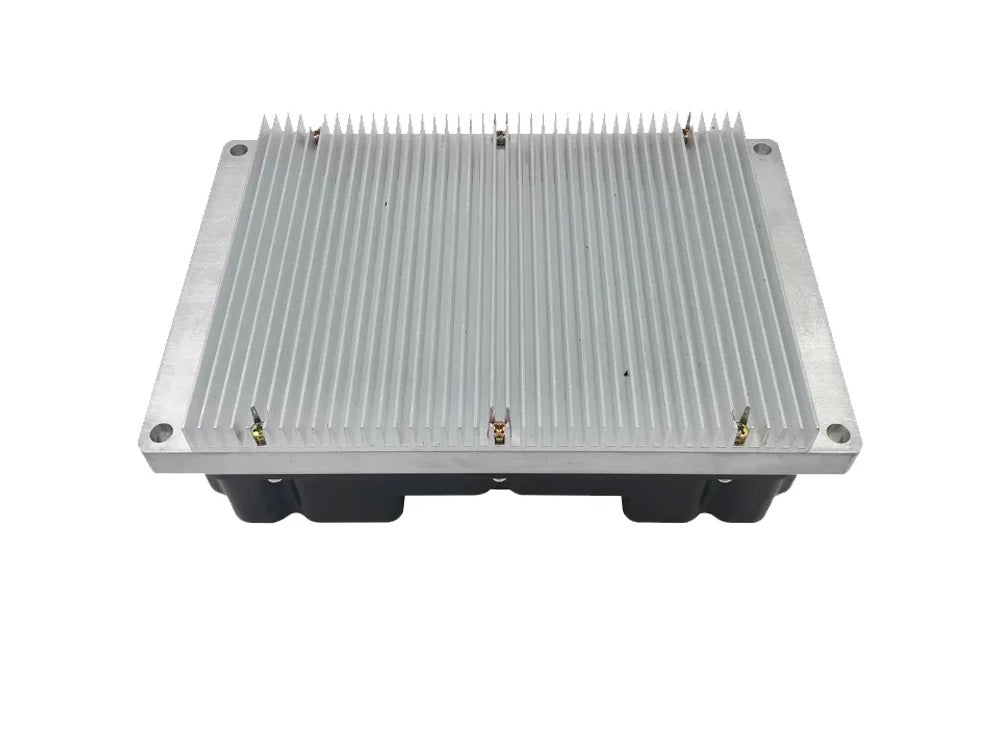

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). The app compatible with Android and Apple
7). With flux weakening function. (The product does not contain magnetism)
Product Description
ND721200, ND841200 and ND961200 are sine wave controller with waterproofing grade IP67, suit for 8-12kw motors.
For ND721200, the peak voltage is 88V
For ND841200, the peak voltage is 100V
For ND961200, the peak voltage is 115V
The mosfet inside is different due to different voltage, which has more temperature resistance in higher voltage.
It’s hall version (as default) which suit with hall motors.
It could also support encoders, please check with sales.
