FarDriver ND961800/ND721800 BLDC 800A 10-15kW High Power Electric Motorcycle Controller with Regenerative Braking Func
Sale price
Price
Rs. 0.00
Regular price
Unit price
per
Tax included.
Shipping calculated at checkout.

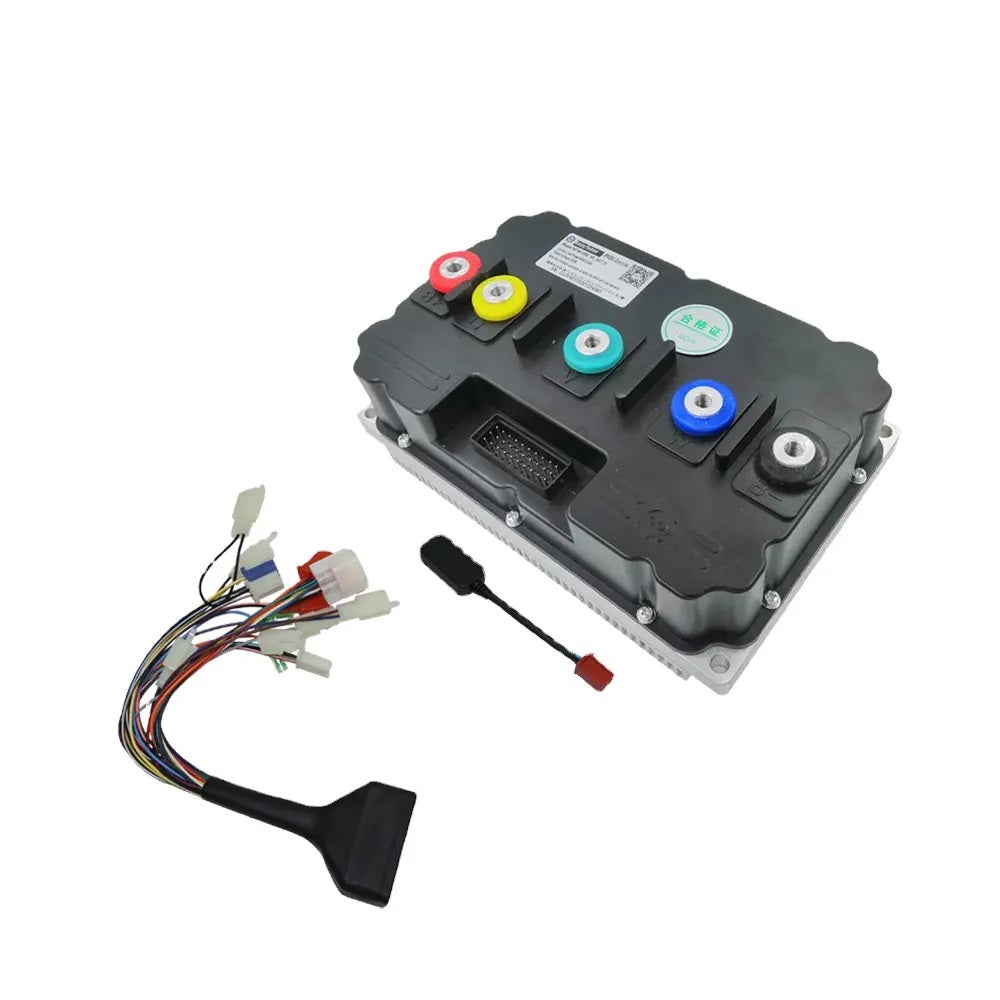

Combo1.
One set including below kits
1. 1pcs X ND961800 sine wave controller
2. 1pcs X Blue-tooth adaptor
Combo2.
One set including below kits
1. 1pcs X ND721800 sine wave controller
2. 1pcs X Blue-tooth adaptor

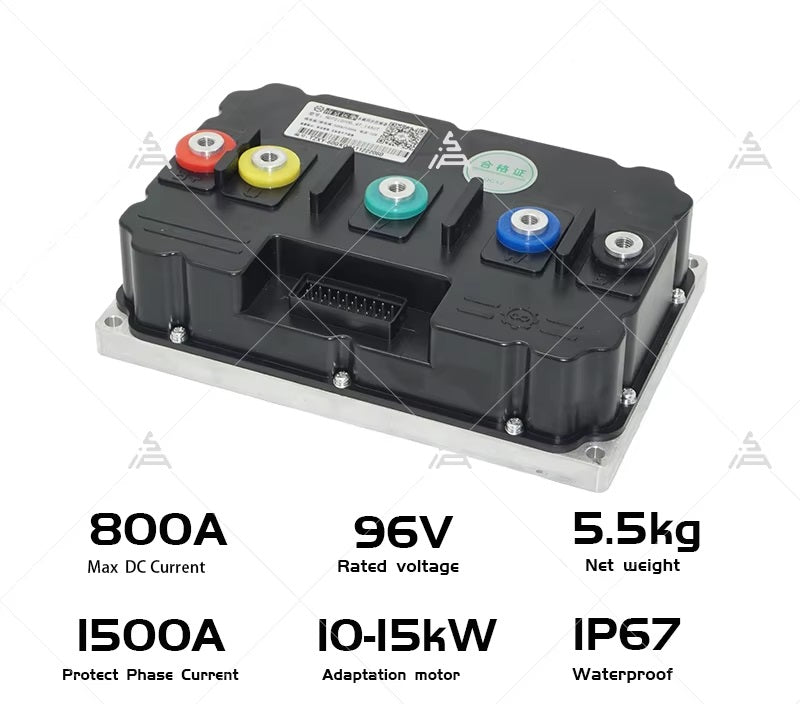

Key Features:
Model Number: ND961800/ND721800
Rated DC Current: 800A
Protect Phase Current: 1500A
Adaptation Motor: 10-15kw
Waterproof Grade: IP67
Product Name: Fardriver Controller
Color: Black
Net Weight: 5.5KG
| 1 | All the raw materials are imported, using high-performance Moss tube, full metal shielding and aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined. |
| 2 | With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board |
| 3 | Small in size |
| 4 | High efficiency, low temperature rise, small running current |
| 5 | With self-learning function, excellent commonality |
| 6 | The app compatible with Android and Apple |
| 7 | With flux weakening function.(The product does not contain magnetism) |
Product Description
ND721800 and ND961800 are sine wave controller with waterproofing grade IP67, suit for 10-15kw motors.
For ND721800, the peak voltage is 88V
For ND961800, the peak voltage is 115V and the mosfet inside more resistant to temperature than ND721800.
It’s hall version (as default) which suit with hall motors.
It could also support encoders, please check with sales.
