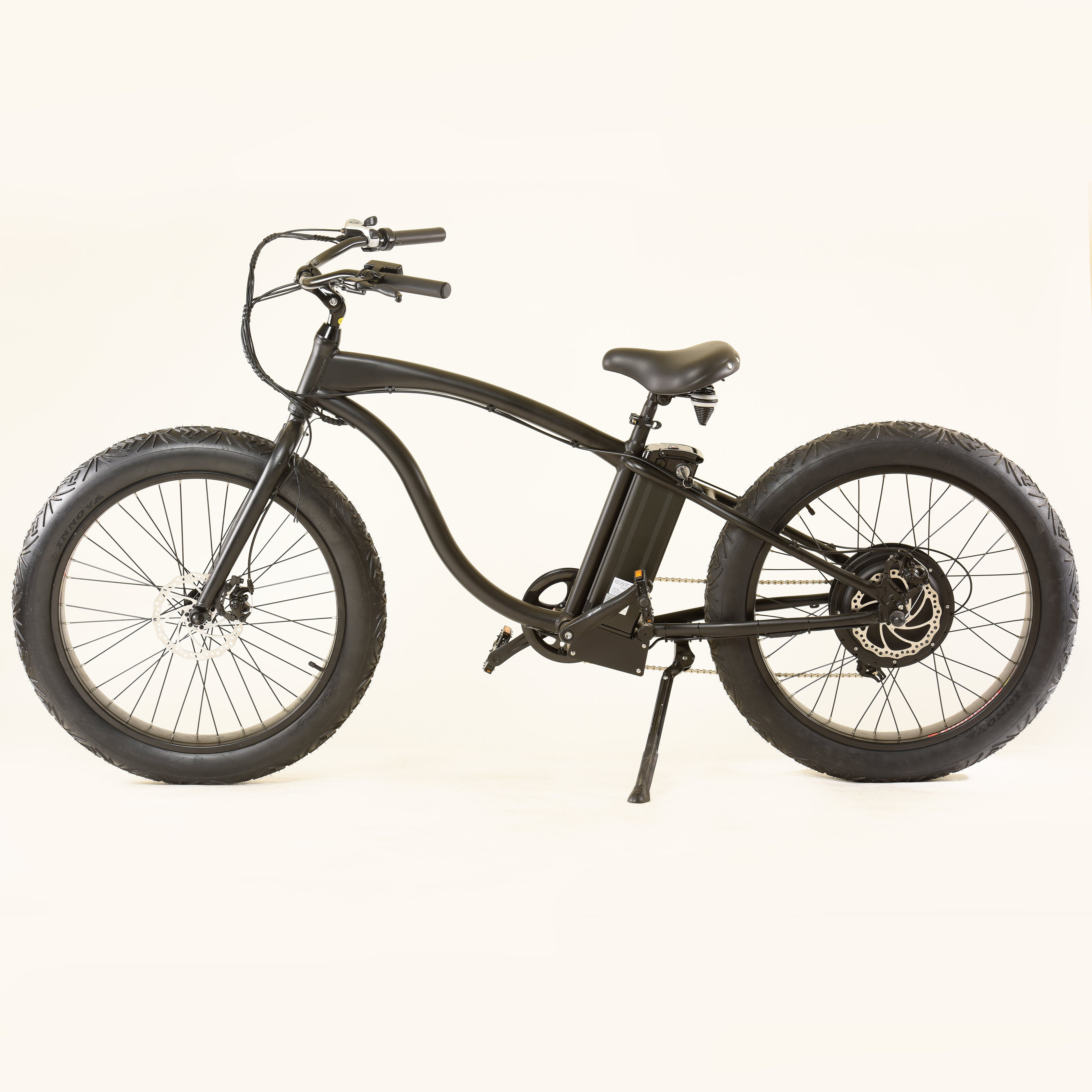

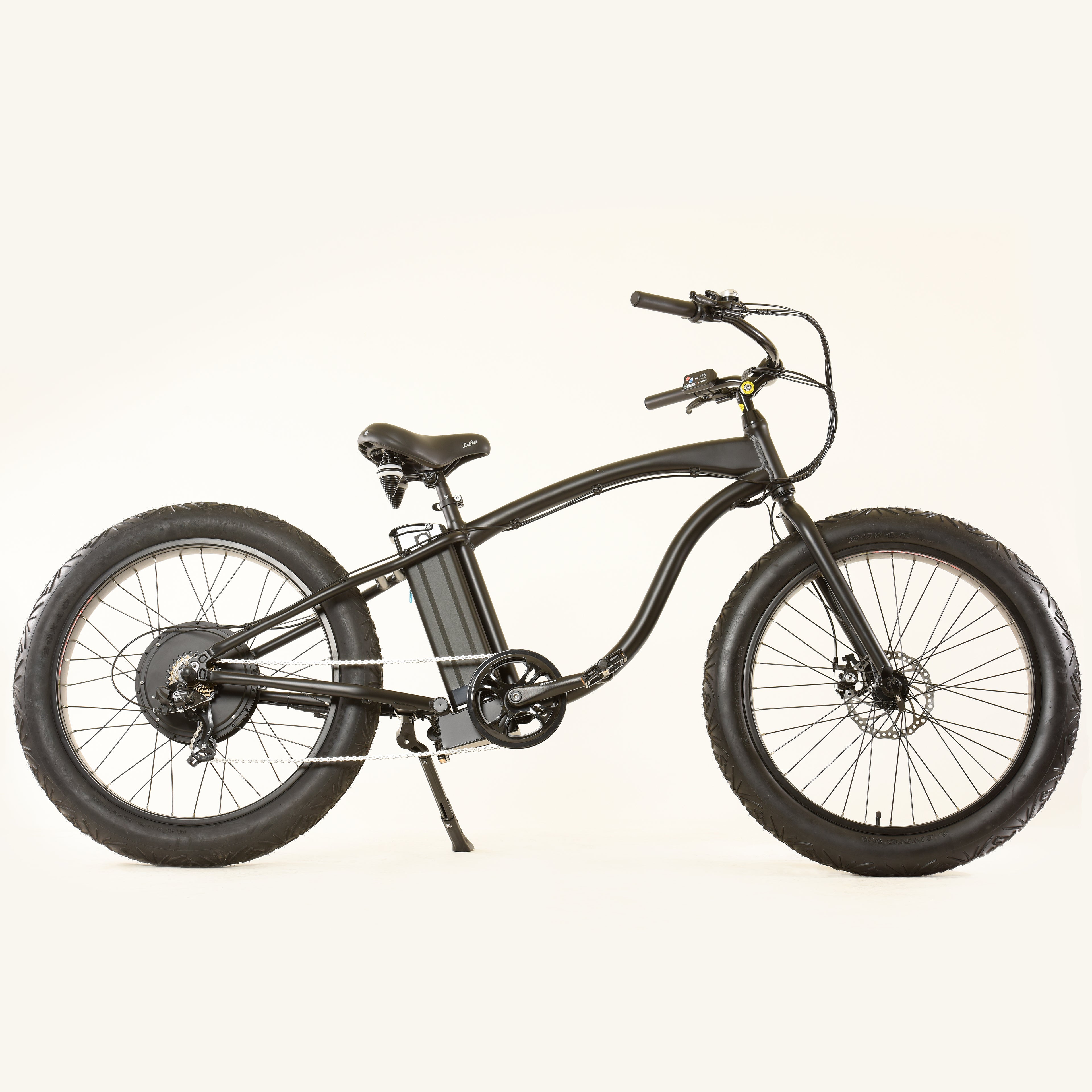

Fat Cruiser 500Watt

Design

Unisex Design for Urban use for all age groups in mind.

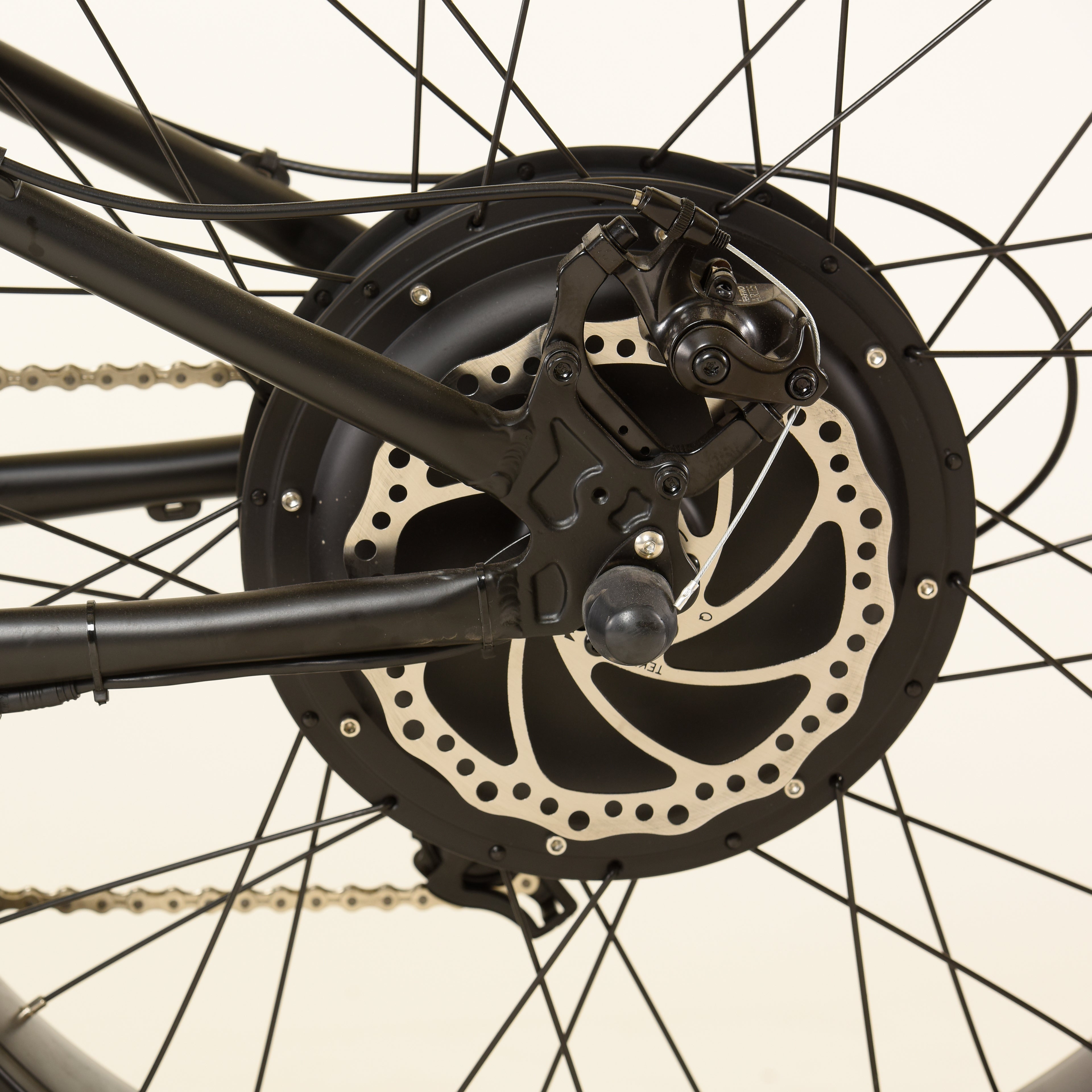

Motor

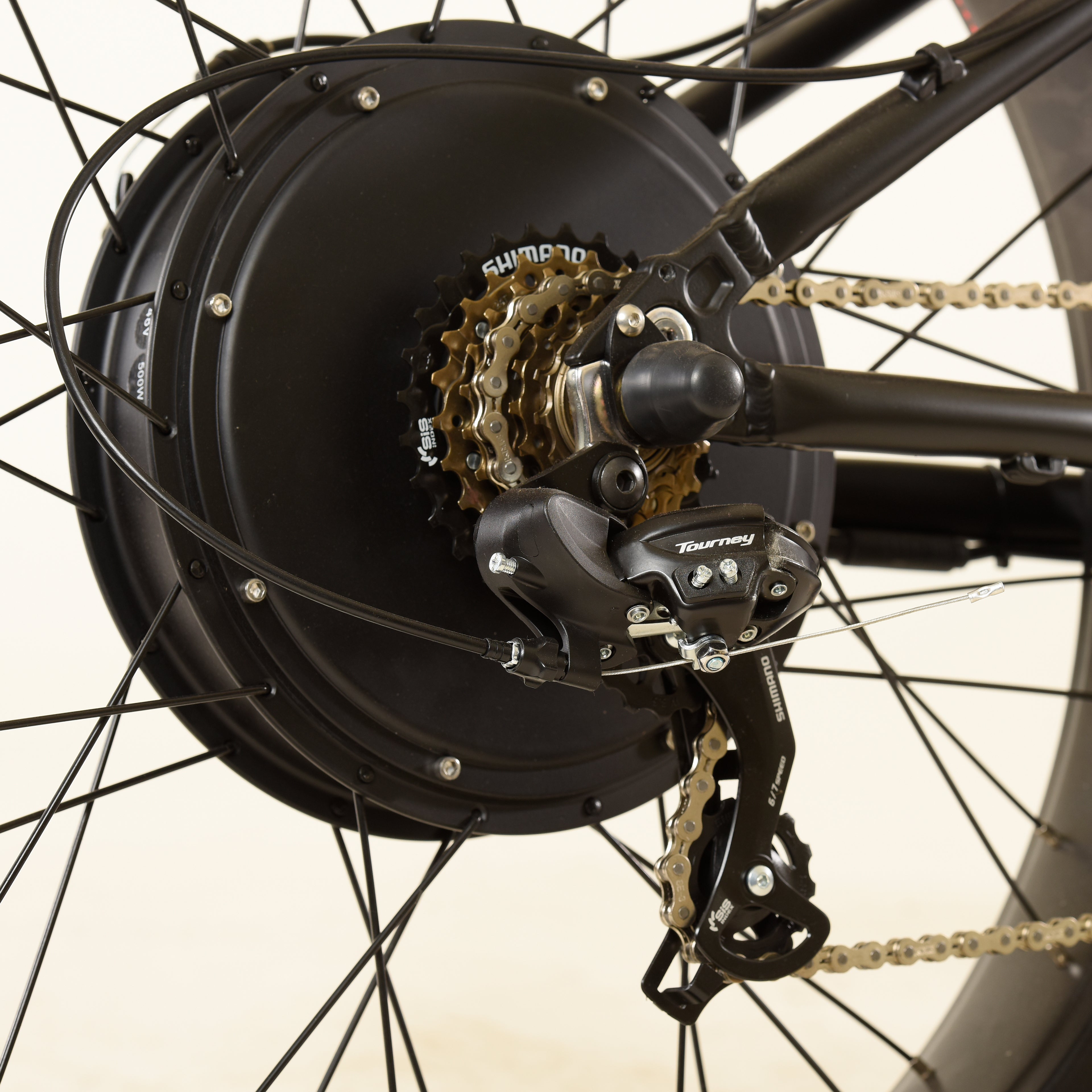

48V 500W Hub Motor
5 Power Modes
Controller: 1::1 speed system (Pedal Assist System )
Speed Sensors
Max range: 70-90 km
Max speed:40 km/hr

3 Power Levels (low, medium and high)

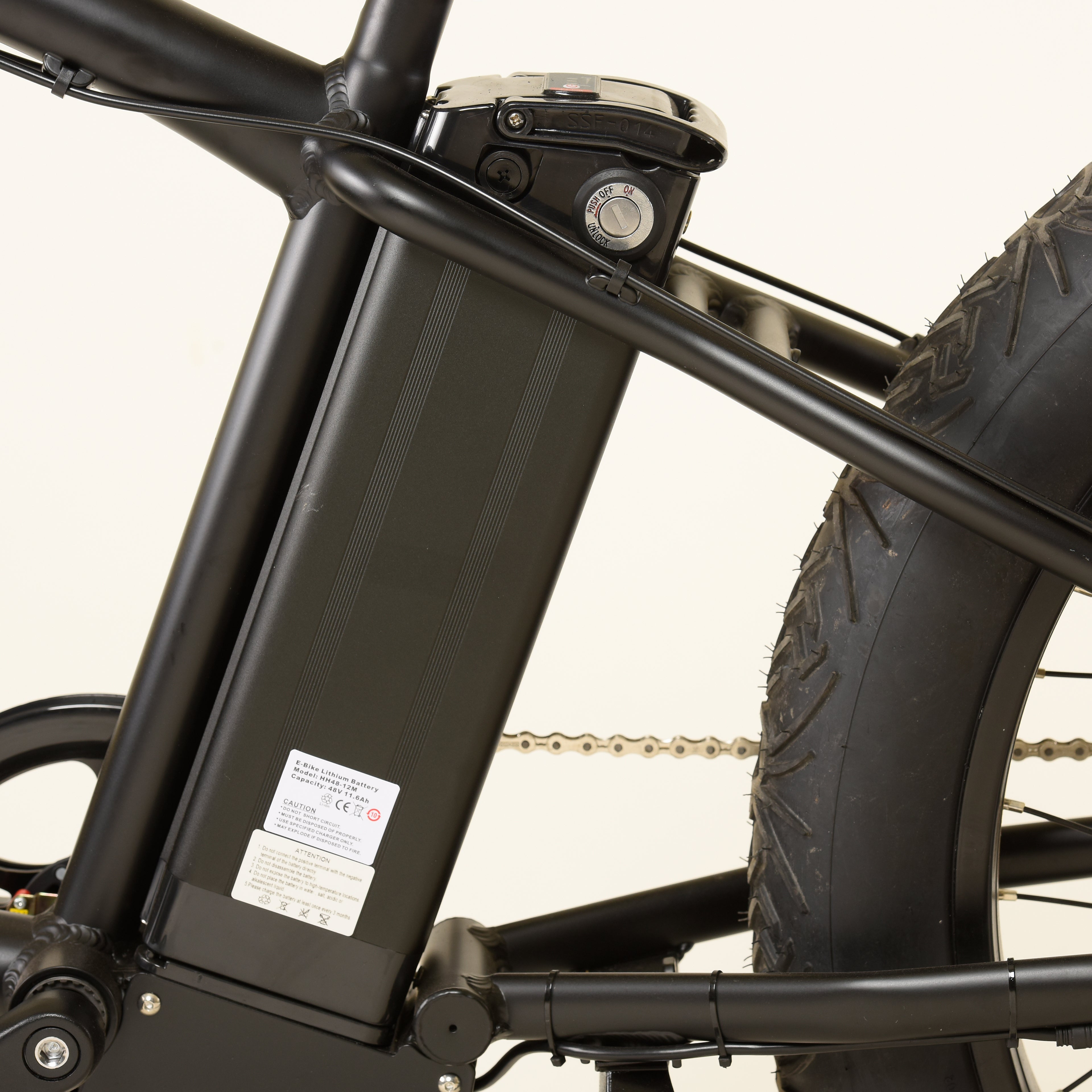

Battery

48V 11.6Ah LG Lithium Ion Battery

Battery Chemistry NCR- Li-on (LiNiCoAlO2)

Charging Voltage: 100-240V automatic, smart charging
Charging time: 4-5 hrs

Frame
Aluminum Alloy 6061-T6 700C x 45 cm

Fork
Aluminum Fork

Drivetrain

Crank: Aluminum

Derailleur: Shimano Tourney 7 speeds
Transmission: Chain, anti-rusty
Shift lever: Shimano SL-TX50-6R
Freewheel: Shimano TZ5006 14-28T

Wheels and Tires

RIMS: Aluminium Alloy, double walls

SPOKES: Steel
TIRE: Chaoyang 700*38C with reflecting line

Brake

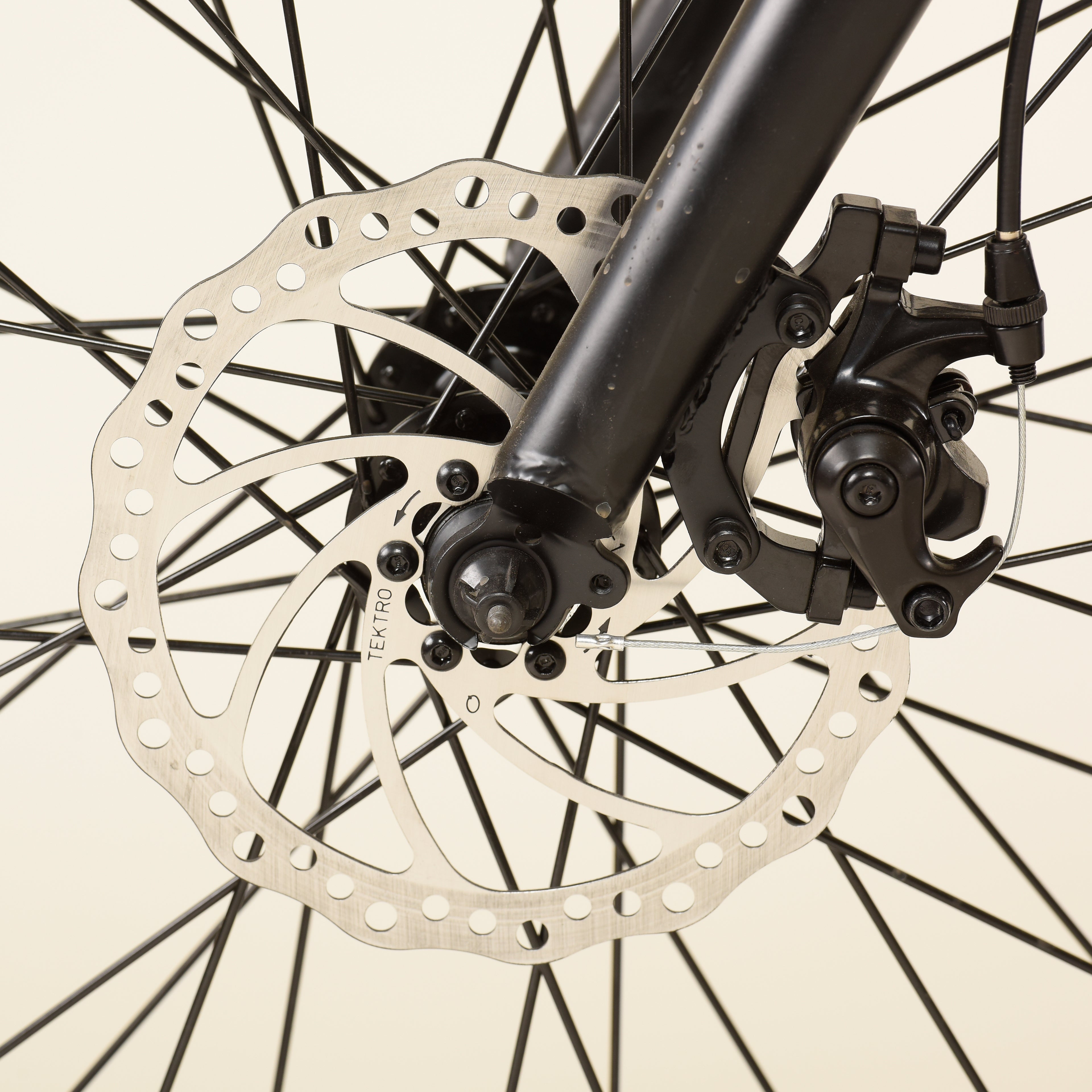

Both F & R: Logan Disc
Lever(F/R): Wuxing, all crank lever

Ebike Details

TOTAL WEIGHT:  25 kgs

STEM: Promax, Aluminum

GRIPS: Hualong, Rubber

SADDLE:
SR Rubber, Super soft

SEAT POST:Promax Aluminium

Pedals: Feimin, Aluminium Alloy

Accessories
Kickstand: Aluminum, side kickstand
Bell
