EV Basics

Here’s a detailed breakdown of the essential components of electric bicycles (e-bikes), covering key aspects: Motor, Controller, Battery Management System (BMS), Battery Pack, Charger, and Analog-to-Digital Converter (ADC).

1.Motor

The electric motor is the heart of an EV. It converts electrical energy from the battery into mechanical energy to drive the vehicle. There are several types of electric motors used in EVs, including:

  • AC Induction Motors: Common in many EVs for their durability and efficiency.
  • Permanent Magnet Synchronous Motors: Offer high efficiency and torque but may require rare earth materials.
  • Switched Reluctance Motors: Simple construction; lower cost but may have limitations in control.

Function: The motor converts electrical energy from the battery into mechanical energy, providing propulsion to the bike.

Types:

  • Hub Motors: Integrated into the wheel hubs.
    • Advantages: Simplicity, low maintenance, and a lower center of gravity.
    • Disadvantages: May have less efficiency and higher wear on spokes.



  • Mid-Drive Motors: Positioned at the bike's crankset.
    • Advantages: Better weight distribution, utilizes the bike's gears for increased efficiency on inclines, better handling.
    • Disadvantages: More complex installation and higher wear on the bike's chain and gears.

Key Specifications:

  • Power Ratings: Usually measured in Watts (W); common ratings range from 250W to 750W for e-bikes.
  • Torque: Measured in Newton-meters (Nm), which indicates how much force the motor can apply; critical for acceleration and climbing hills.
  • Efficiency: Indicates how effectively the motor converts electrical energy into mechanical power.




    2.Controller

    The motor controller is an essential component that regulates the performance of the electric motor. It manages the delivery of power from the battery to the motor and controls aspects like:

    Speed: Determining how fast the motor turns.

    Torque: Controlling how much force the motor applies.

    Direction: Switching between forward and reverse operation.

    The controller functions as the brain of the motor system, ensuring smooth operation based on driver inputs.

    Function: The controller manages the power flow from the battery to the motor. It interprets signals from the rider (such as throttle input or pedal assist) and adjusts the motor output accordingly.

    Key Features:

    • Signal Processing: Receives input from throttle, pedal-assist sensors, and sometimes brake sensors.
    • Speed Control: Regulates motor speed and power output to ensure smooth acceleration.
    • Thermal Management: Protects the system from overheating by regulating power output.
    • Regenerative Braking: In some systems, the controller can return some energy to the battery during braking.

    Important Specifications:

    • Current Ratings: Determines how much power the controller can handle; specified in Amperes (A).
    • Voltage Rating: Must match the system voltage (typically 24V, 36V, or 48V).





    3.Battery Management System (BMS)

    The Battery Management System monitors and manages the battery pack's performance and safety.

    Function: The BMS ensures the safe operation of the battery pack by monitoring and managing the performance and health of individual cells.

    Key Responsibilities:

    • Cell Balancing: Ensures that all cells within the battery pack are charged and discharged evenly, extending battery life.
    • Overcharge Protection: Prevents the battery from being charged beyond its maximum voltage.
    • Over-discharge Protection: Prevents excessive discharge which can lead to cell damage.
    • Temperature Monitoring: Protects against overheating and ensures the battery operates within safe temperature limits.
    • Short-Circuit Protection: Detects any short circuits in the system and disconnects power to prevent hazards.

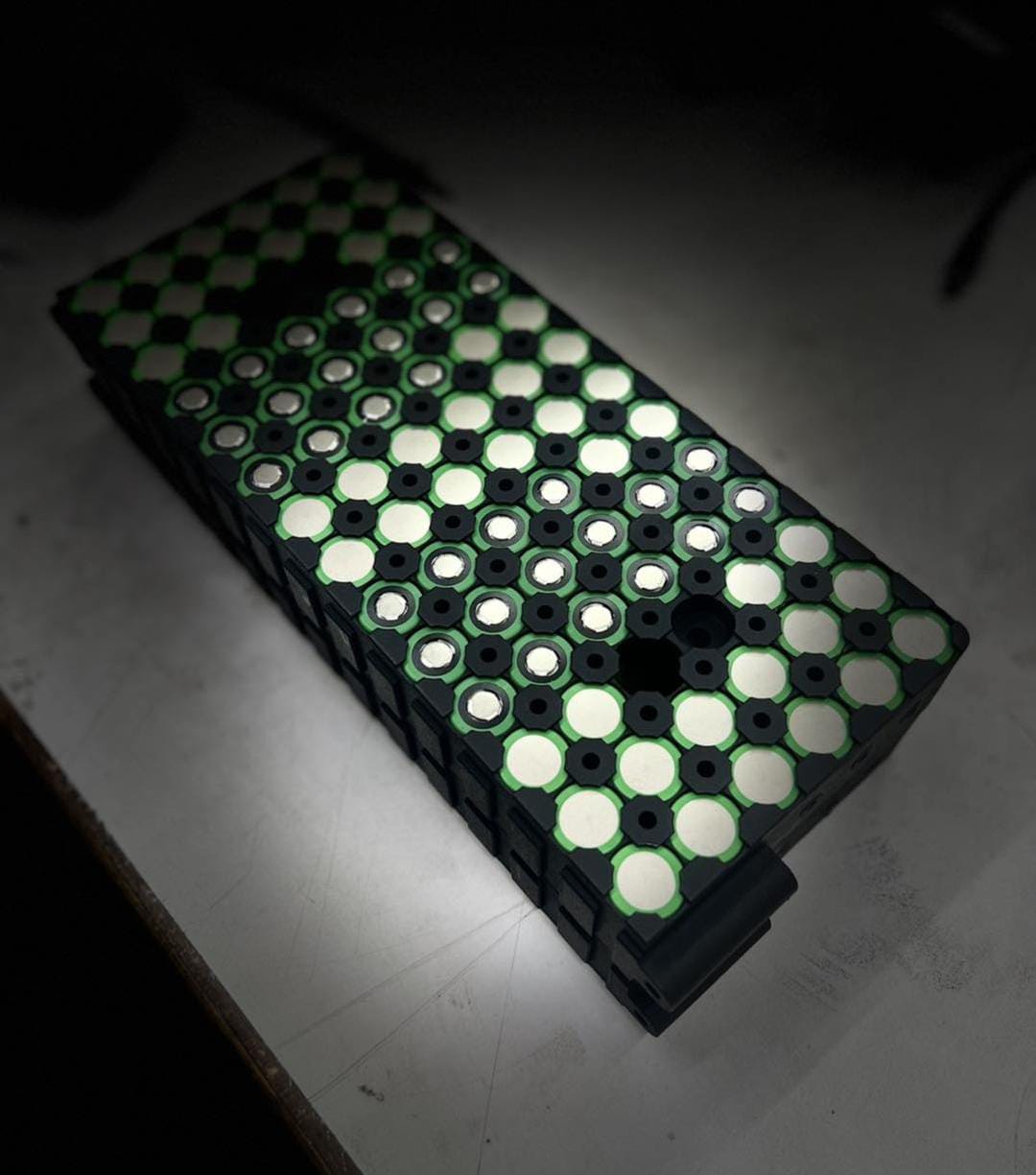

    4.Battery Pack

    The battery pack stores energy for the EV. It typically consists of multiple battery cells connected in series and parallel to achieve the desired voltage and capacity. Most EVs use lithium-ion batteries due to their high energy density and efficiency. Key characteristics of battery packs include:

    Capacity: Measured in kilowatt-hours (kWh), representing the amount of energy stored.

    Voltage: The electrical potential provided, affecting the power output.

    Cooling Systems: Necessary to manage heat produced during charging and discharging.

    Configurations:

    • Number of Cells: Battery packs are typically made up of multiple cells arranged in series (to increase voltage) and parallel (to increase capacity).
    • Module Design: Many e-bikes use modular battery designs that allow for easier replacement or upgrade.





    5.Charger

      Function: The charger replenishes the battery pack by converting AC mains electricity to DC power.

      Key Features:

      • Output Voltage and Current: Must match the battery pack ratings to ensure proper charging.
      • Charging Method: Can include features like:
        • Constant Current/Constant Voltage (CC/CV) for efficient charging.
        • Smart charging protocols that can communicate with the BMS to optimize charging cycles.
      • Safety Features: Over-voltage, over-current, and temperature protection to ensure safe charging.

      Charging Time: Depends on the battery capacity and the current rating of the charger.





      6.Analog-to-Digital Converter (ADC)

        An ADC is an electronic component that converts analog signals (like voltage levels from battery cells or other sensors) into digital signals that can be processed by a microcontroller or digital system. In the context of EVs:

        Function: The ADC converts analog signals (like those from the sensors) into digital data that the controller can process.

        Key Features:

        • Resolution: Indicates how finely the ADC can measure changes in signal; higher resolution allows for more precise control.
        • Speed: The sampling rate; faster ADCs provide quicker response times for dynamic applications like motor control.
        • Input Channels: May need multiple channels to read signals from various sensors (pedal-assist sensor, throttle, etc.).



        Conclusion

        When it comes to e-bikes, each of these components plays a vital role in determining the performance, efficiency, reliability, and safety of the bicycle. Proper integration and compatibility among the motor, controller, BMS, battery pack, charger, and ADC are essential for achieving a harmonious and high-performing e-bike system. As technology advances, innovations in these components help enhance e-bike experiences, making them an increasingly popular choice among cyclists and commuters alike.
